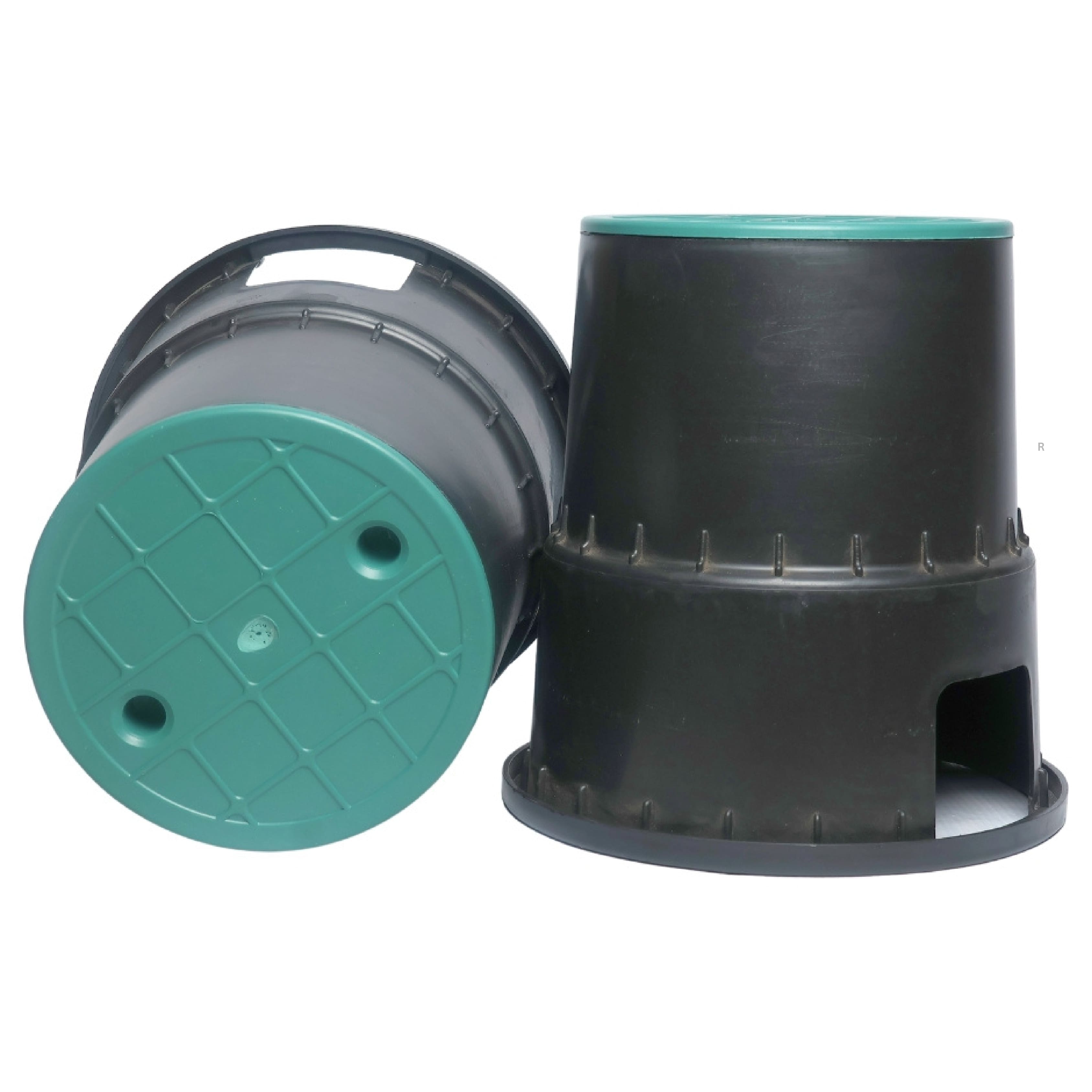

An Earthing Chamber Box (also called an Earth Pit Chamber or Inspection Chamber) is a protective enclosure installed above the earthing system (such as an earth electrode) to house and protect the earthing connection. It allows easy access for inspection, maintenance, and testing of the earthing system without needing to dig up the ground.
The chamber is typically placed above the earth electrode, such as a copper plate, pipe, or rod, and forms part of a safe and maintainable earthing setup.
Protects the earth electrode and connections from physical damage, moisture, and contamination.
Allows access for regular maintenance and earth resistance testing.
Organizes the termination point of the earthing conductor.
Ensures compliance with electrical safety regulations.
Helps maintain a clean and safe area around the earth pit
Earthing chamber boxes are made from strong, weather-resistant materials such as:
High-Density Polyethylene (HDPE) – Lightweight, non-corrosive, and long-lasting.
Concrete (RCC) – Very durable, suitable for heavy-duty installations.
FRP (Fiber Reinforced Plastic) – Corrosion-resistant and UV-stable.
PVC – Affordable and commonly used in low-load areas.
Easy access for testing and maintenance
Protects the connection from water, dust, and tampering
Neat and organized finish for the earthing system
Durable and long-lasting construction
Complies with electrical safety norms
Residential and commercial buildings
Factories and industrial areas
Electrical substations
Solar and wind energy projects
Data centers and telecom sites
Hospitals, schools, and government offices
