GI (Galvanized Iron) Earthing Pipes are hollow, perforated metal pipes made from galvanized iron that are used as earth electrodes in electrical earthing systems. These pipes are buried vertically in the ground to safely dissipate fault currents, leakage currents, and lightning surges into the earth.
They are most commonly used in residential, commercial, and industrial electrical installations for pipe earthing, which is one of the most economical and widely used earthing methods.
Provide a Low-Resistance Path: Safely discharge electrical faults into the ground.
Improve System Safety: Prevent electric shock and equipment damage.
Ensure System Stability: Maintain voltage levels during electrical faults or lightning events.
Dissipate Surges: Useful in lightning protection systems for surge discharge.
Material: Galvanized Iron (iron coated with zinc to resist corrosion)
Length: Typically 1 to 3 meters
Diameter: Usually 40 mm to 100 mm depending on load requirements
Design:
Perforated Holes: Allow moisture and minerals from the surrounding soil to contact the pipe, improving conductivity.
Holes or Slots: Increase surface area for better current dissipation.

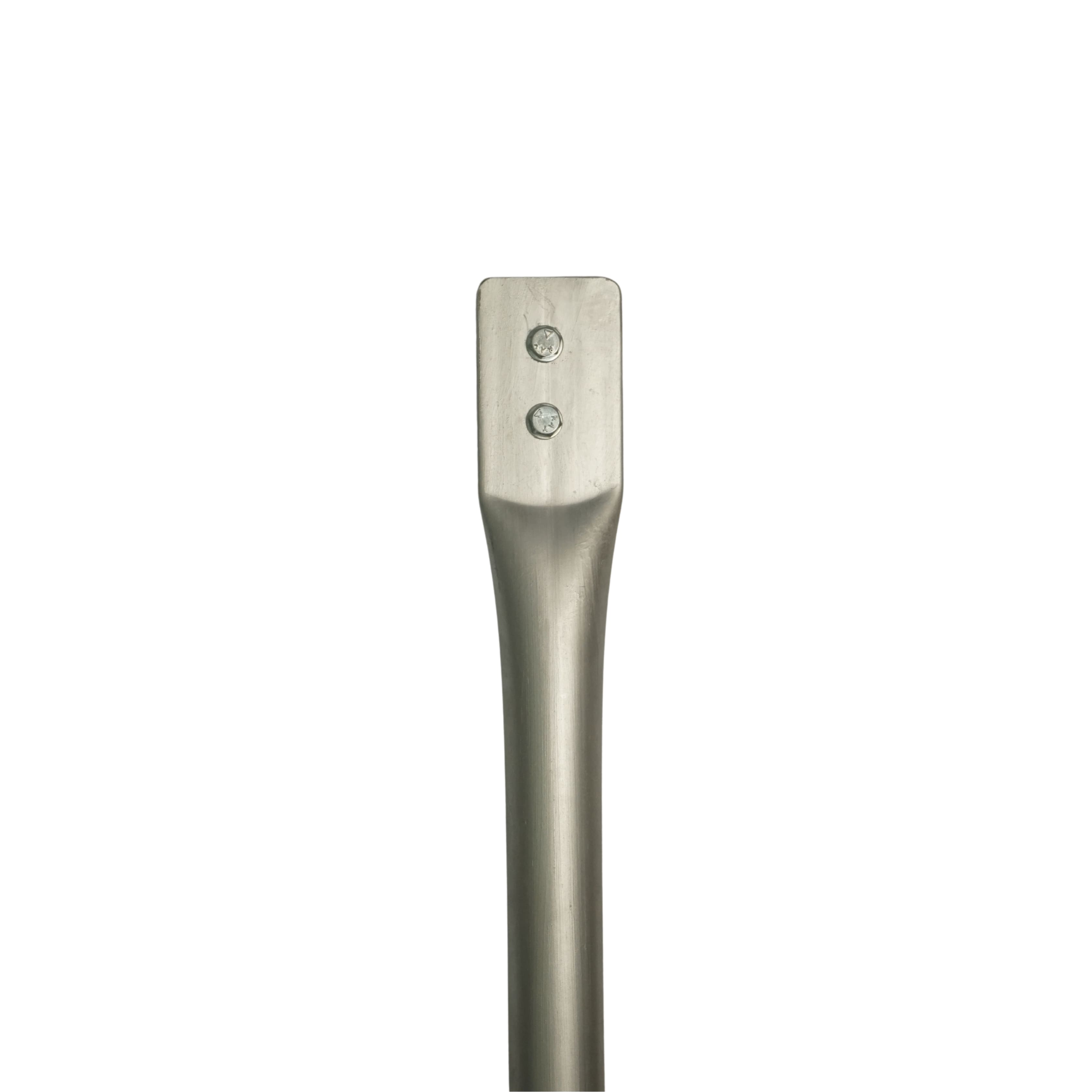

Flat or Pressing: For connecting earth wires or strips.
Earth Pit: A pit is dug (usually 3 to 4 feet deep or more, depending on soil resistivity).
Filling: The pit is filled with layers of non-corrosive backfill earthing compound, which enhances the conductivity around the pipe.
Pipe Placement: The GI earthing pipe is placed vertically in the pit.
Connection: A GI or copper strip/wire connects the pipe to the electrical system (main earth bus or panel).
Earthing Chamber: A cover or chamber is installed for periodic inspection and maintenance.
Economical: Cost-effective for standard earthing applications.
Corrosion Resistant: Galvanized coating protects against rust for many years.
Efficient Dissipation: Perforated design ensures good contact with surrounding soil and moisture.
Easy to Install: Straightforward method for most types of buildings and locations.
Residential buildings
Office complexes
Industrial sheds
Electrical substations
Telecom towers
Generator and transformer earthing
Check earth resistance periodically (should typically be < 5 ohms).
Refill the pit with Earthing Compound every 2–3 years if needed.
Inspect the connection between the GI pipe and earth conductor.
