An Earthing Terminal Bar, also known as an Earth Busbar, is a metal strip or bar that serves as a common grounding point for multiple electrical circuits in a system. It is used to safely connect and distribute earth (ground) wires from different parts of an installation to a main earthing system.
It plays a vital role in ensuring the safe discharge of fault currents, maintaining system stability, and protecting people and equipment from electric shock.
To collect and distribute all earthing (grounding) connections in one place
To provide a low-resistance path to the ground
To improve safety and prevent electrical hazards
To simplify installation, testing, and maintenance of the earthing system

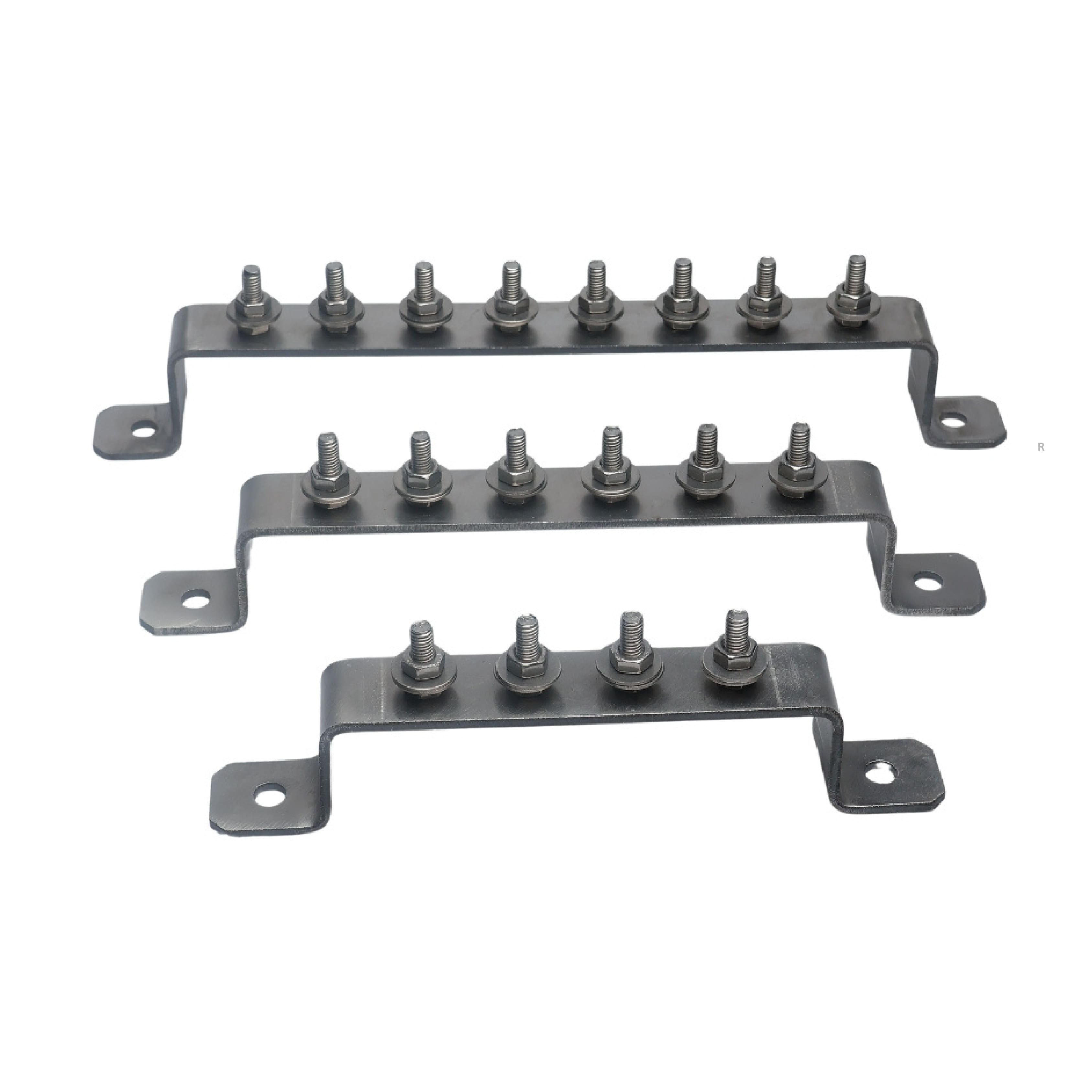

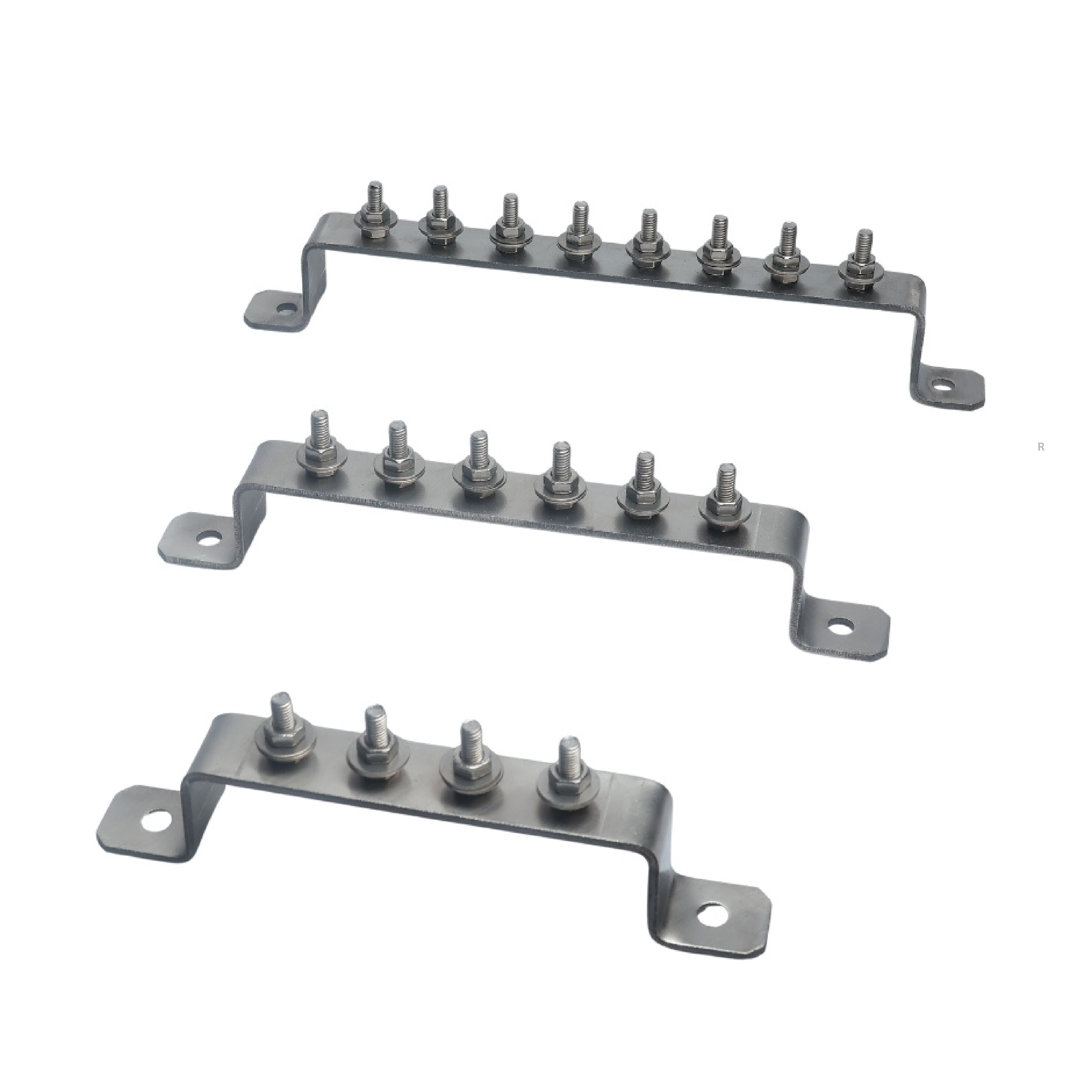

Material: Made from high-conductivity metals like copper or SS
Design: Flat bar or strip with pre-drilled holes for connecting wires using screws or lugs
Mounting: Usually mounted on insulated bases inside panels or enclosures
Length & Hole Count: Available in various sizes (commonly 3, 4, 6, 8, 10, 12, or more holes)
Electrical distribution boards
Control panels and switchgear
Residential, commercial, and industrial wiring
Earthing pits for connecting multiple earth wires
Data centers, telecom cabinets, and server rooms
Generator, UPS, and solar power systems
Centralized earthing connections
Improved system safety and grounding efficiency
Easy to inspect and maintain
Neat and organized wiring layout
Helps ensure compliance with electrical safety standards
